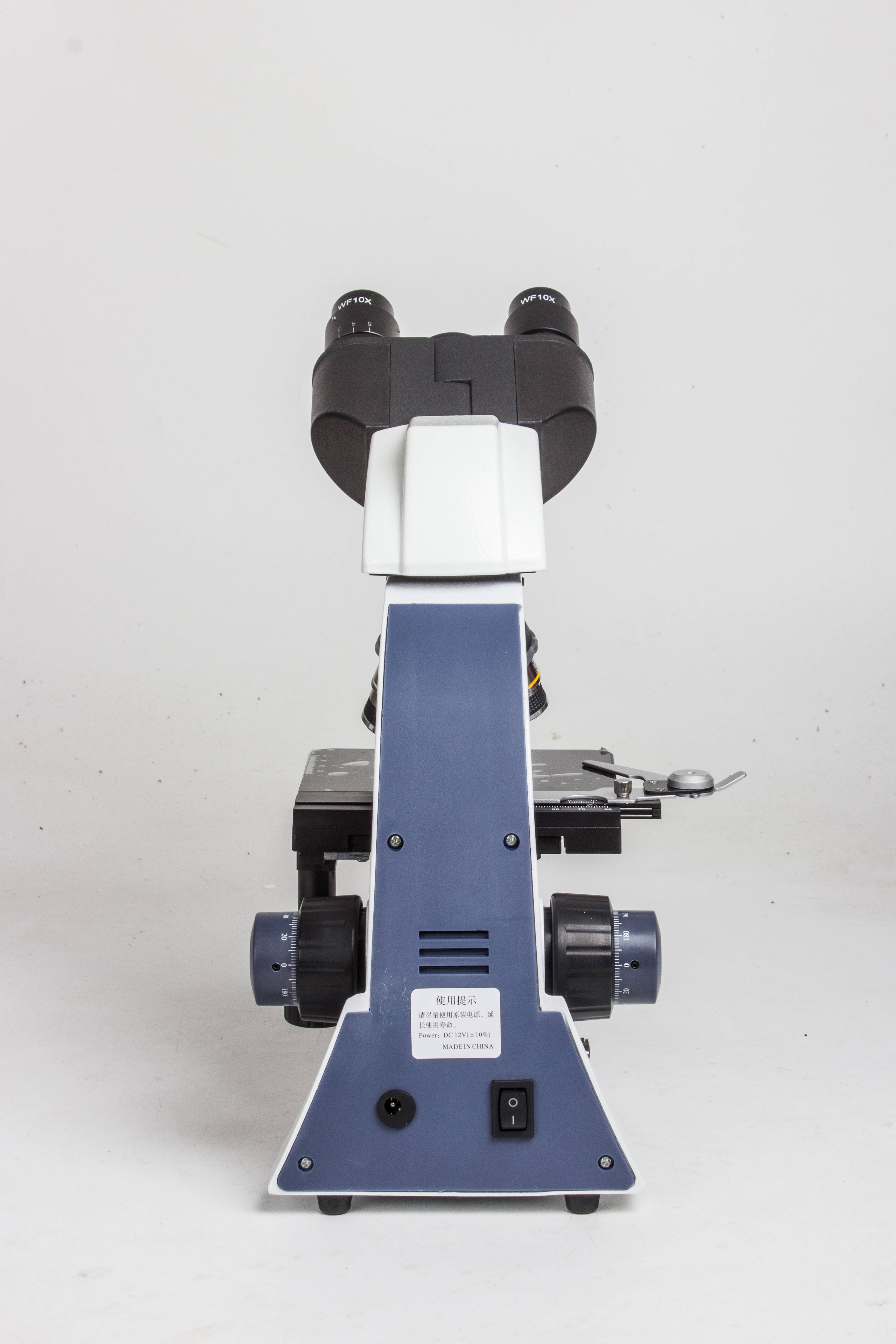

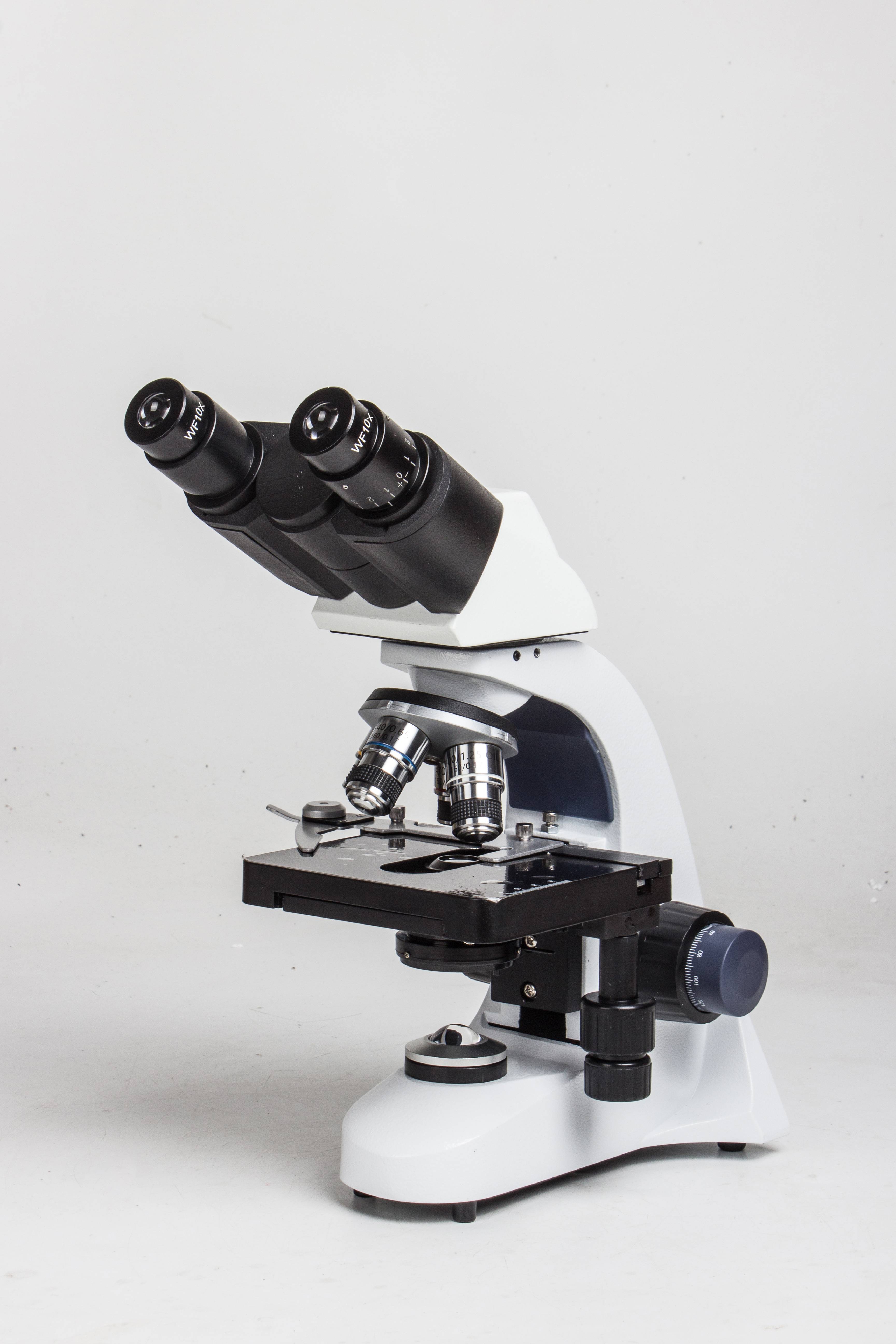

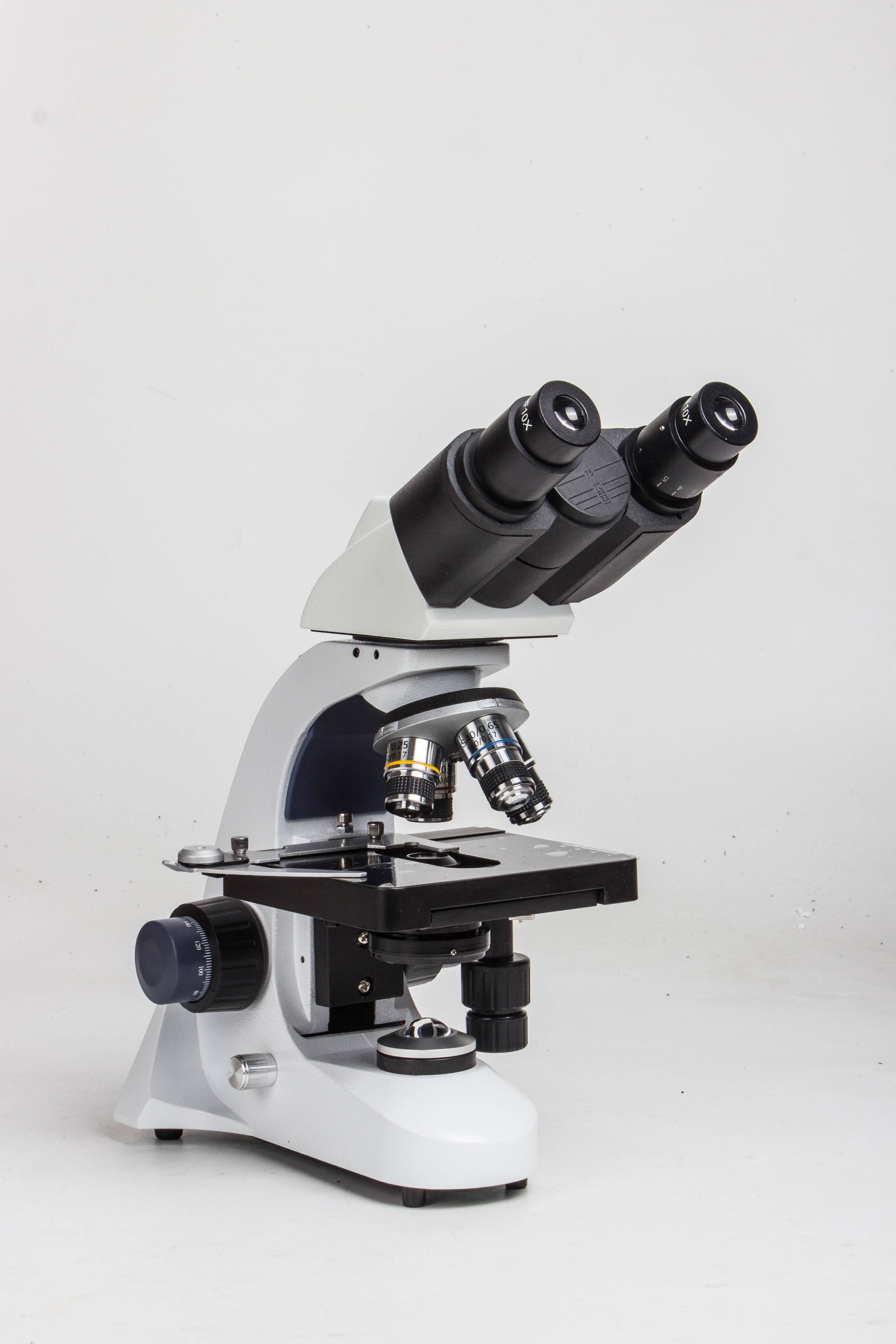

BL-210/220
BL-210 / BL-220 Key Selling Points
- Mono, Binocular & Trinocular options — covers individual, shared and documentation needs
- Plan eyepiece WF10× — wide field of view for comfortable long-session observation
- 100× oil immersion objective — suitable for microbiology, pathology and clinical lab use
- Dual-layer mechanical stage — precise specimen positioning with moving scale
- 4-hole nosepiece — quick and smooth objective switching
- Screen ready — compatible with electronic eyepiece and display screen
- Temperature control option — constant temperature device for live specimen observation
Related products
Describe
BL-210 / BL-220 Specifications
- Observation Head: Monocular / Binocular / Trinocular (TV)
- Eyepiece: Wide-field WF10×
- Objectives: Achromatic 4×, 10×, 40×(Spring), 100×(Oil, Spring)
- Interpupillary Distance: 55–75 mm
- Stage: Dual-layer mechanical stage with moving scale (115×125 mm)
- Focusing: Coaxial coarse & fine focusing with axial mechanism
- Nosepiece: 4-hole nosepiece
- Illumination: LED, dual top and bottom light sources with adjustable brightness
- Optional Accessories: 20×, 25× eyepieces; electronic eyepiece; display screen; constant temperature device
