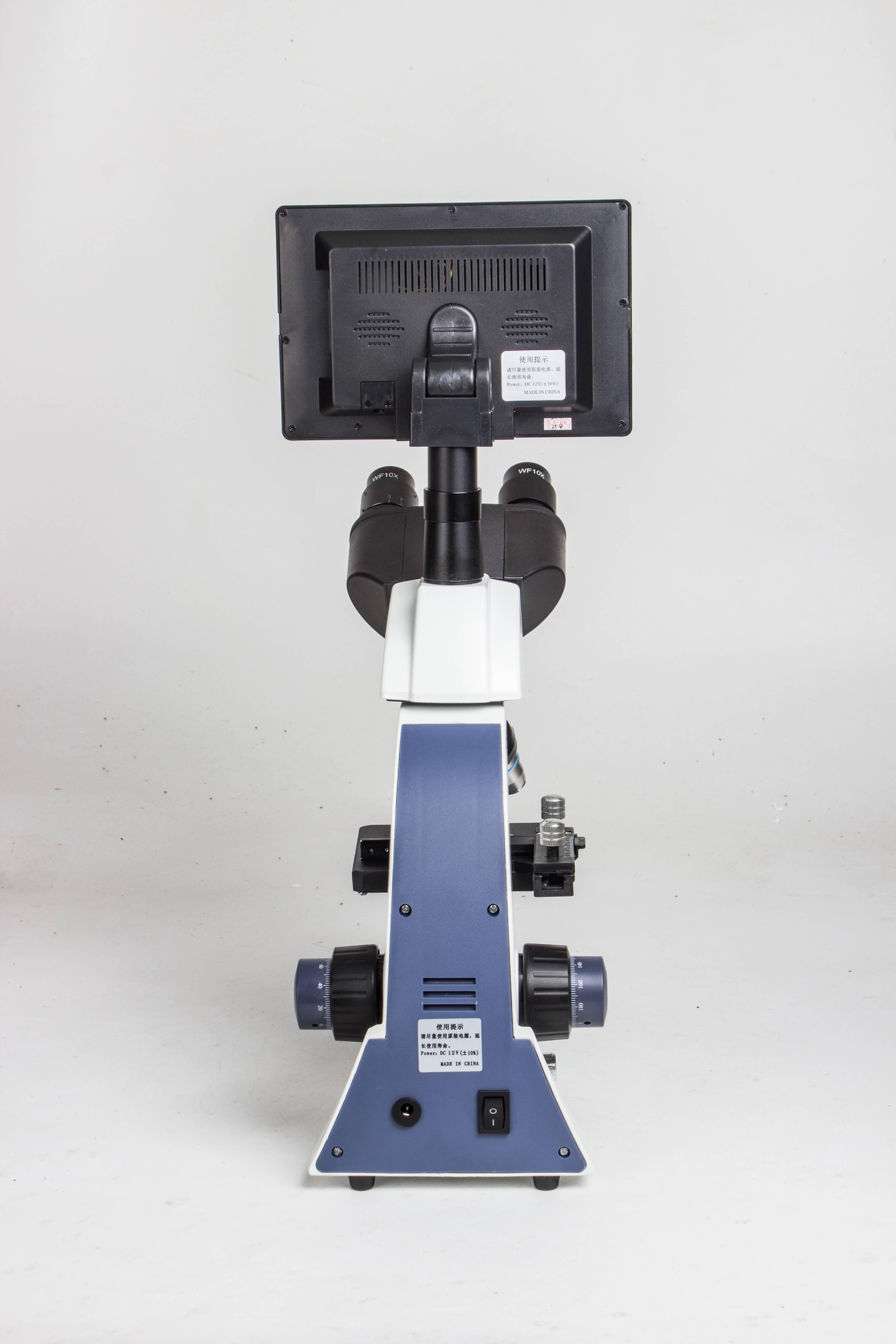

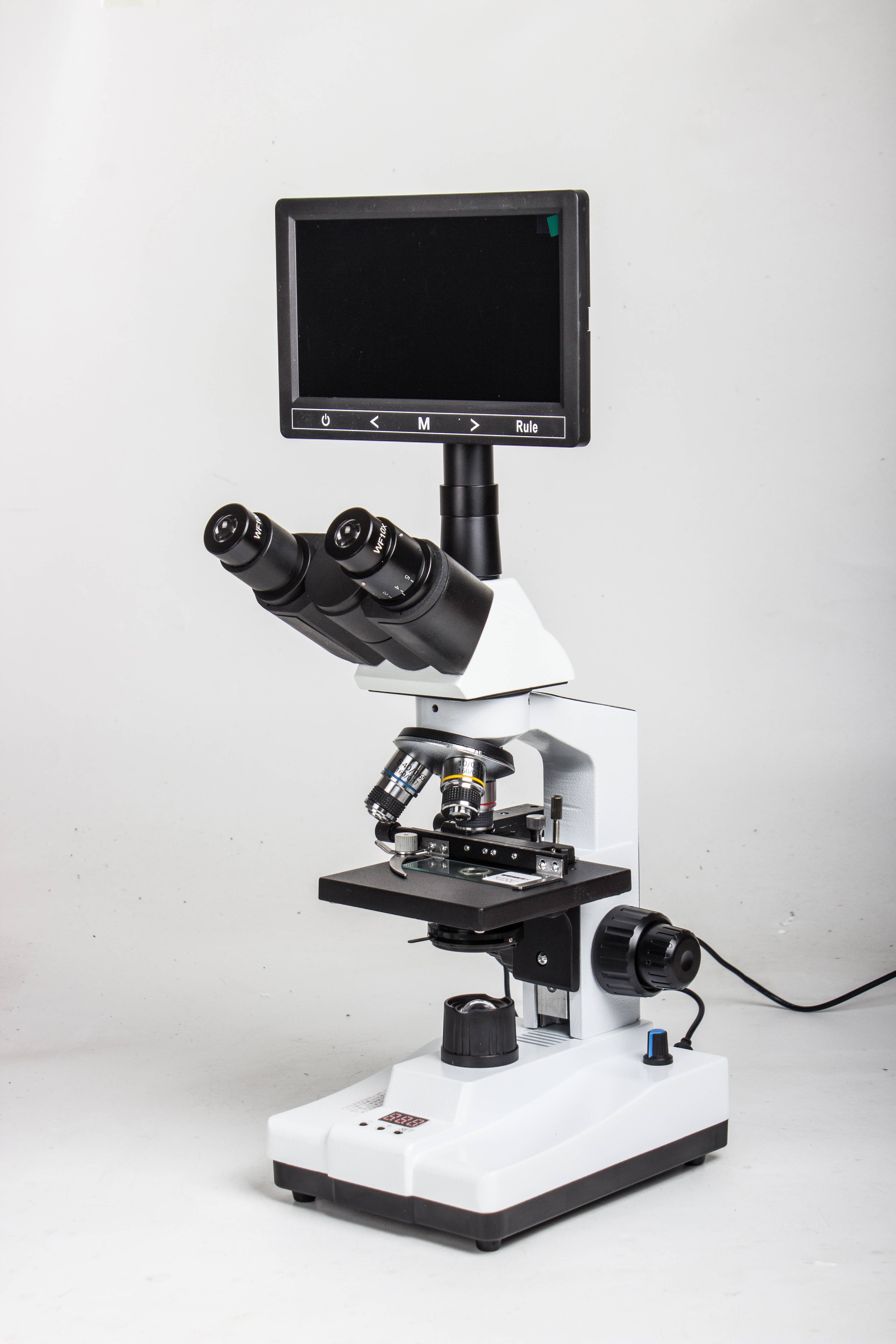

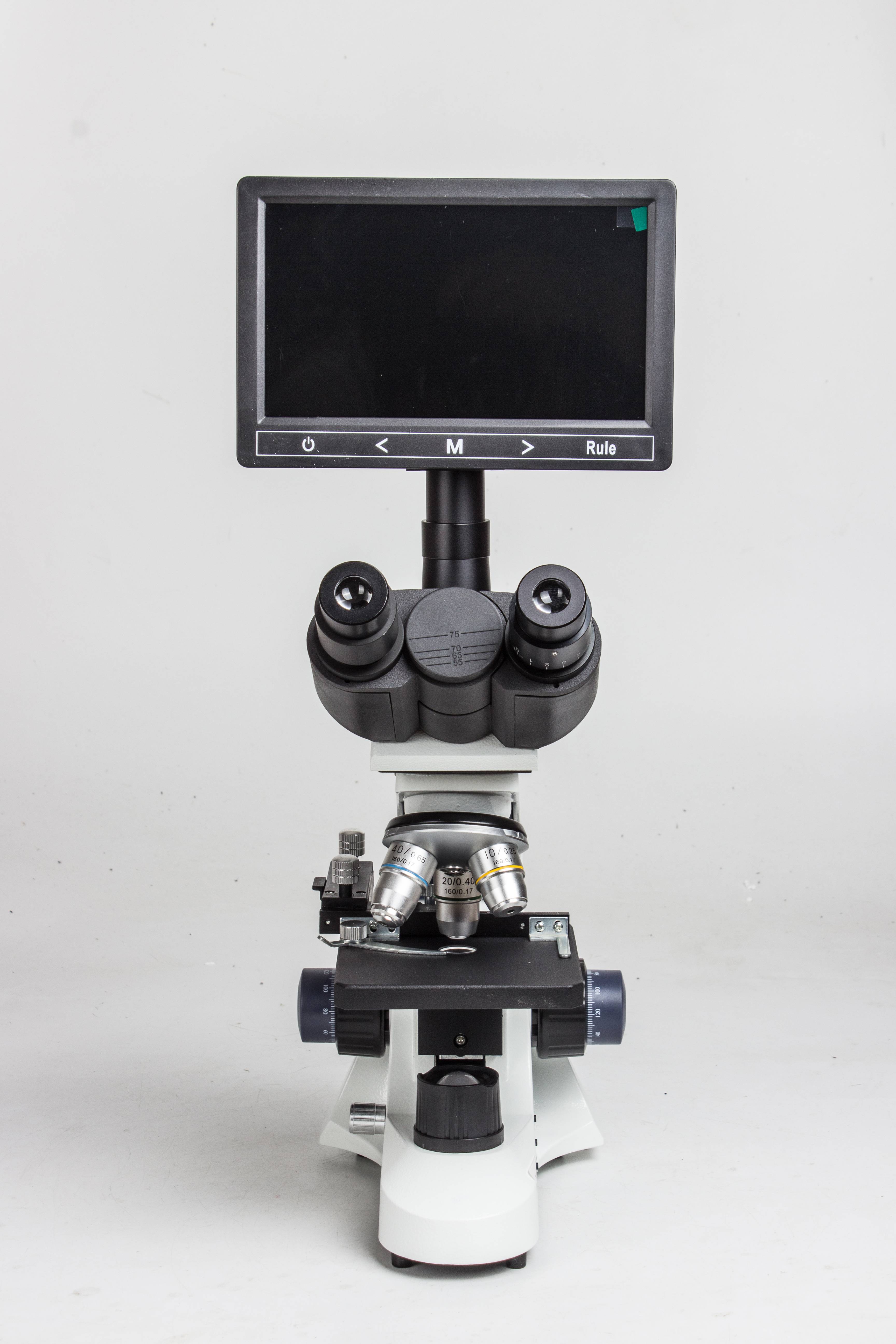

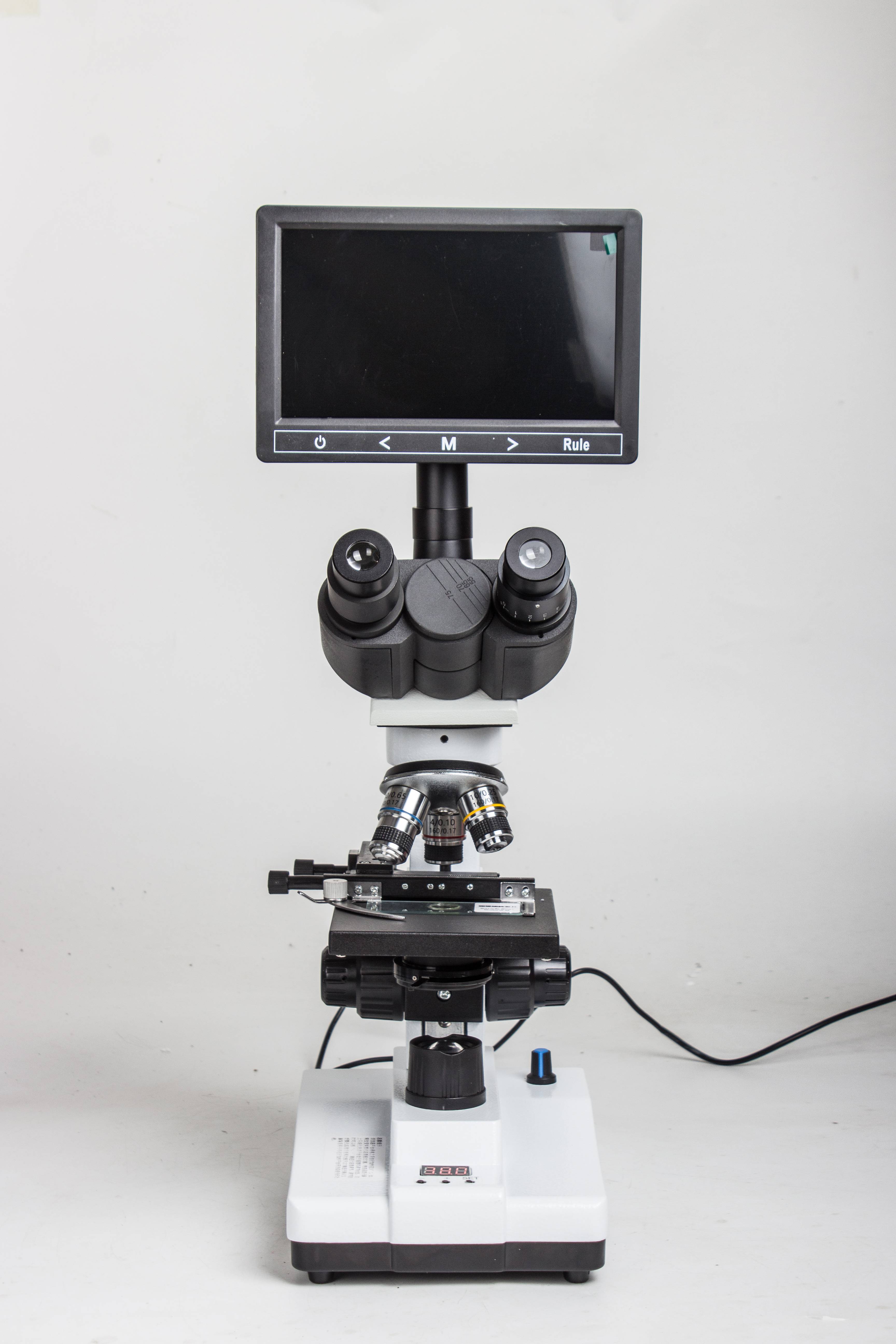

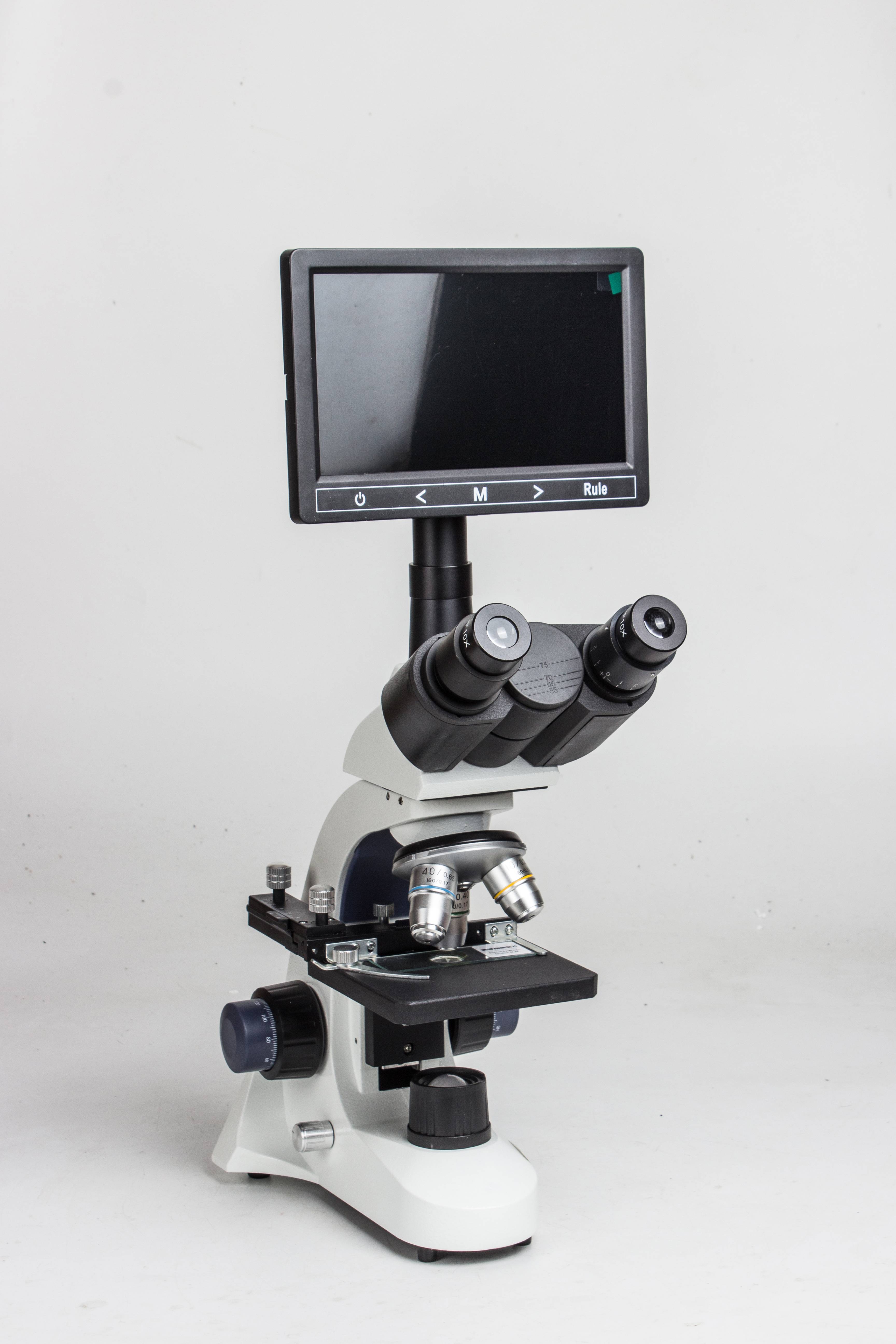

Temperature-Controlled Stage Microscope
Key Selling Points
- 7-inch HD screen built-in — real-time observation without eyepiece fatigue
- 360° rotatable head — ergonomic viewing from any angle
- 4 models available — BL-35, BL-32, BL-20, BL-120 base configurations
- Heating stage option — constant-temperature stage up to 50°C for live specimen work
- Wide-angle WF10× eyepiece — comfortable extended viewing
- Compact TV head — ideal for teaching, demonstration and group observation
Related products
Describe
BL-35TVRT-7.0 / BL-32TVRT-7.0 / BL-20TVRT-7.0 / BL-120TVRT-7.0 Specifications
- Display: HD 7-inch screen
- Observation Head: Monocular (TV), 360° rotatable
- Interpupillary Distance: 55–75 mm
- Eyepiece: Wide-angle WF10×
- Objectives: Achromatic 4×, 10×, 40×(Spring)
- Stage: Single-layer stage with moving ruler (110×120 mm)
- Focusing: Coaxial coarse & fine focusing with axial division
- Nosepiece: 3-hole nosepiece
- Illumination: LED, adjustable brightness
- Optional: Constant-temperature heating stage, adjustable from room temperature to 50°C
