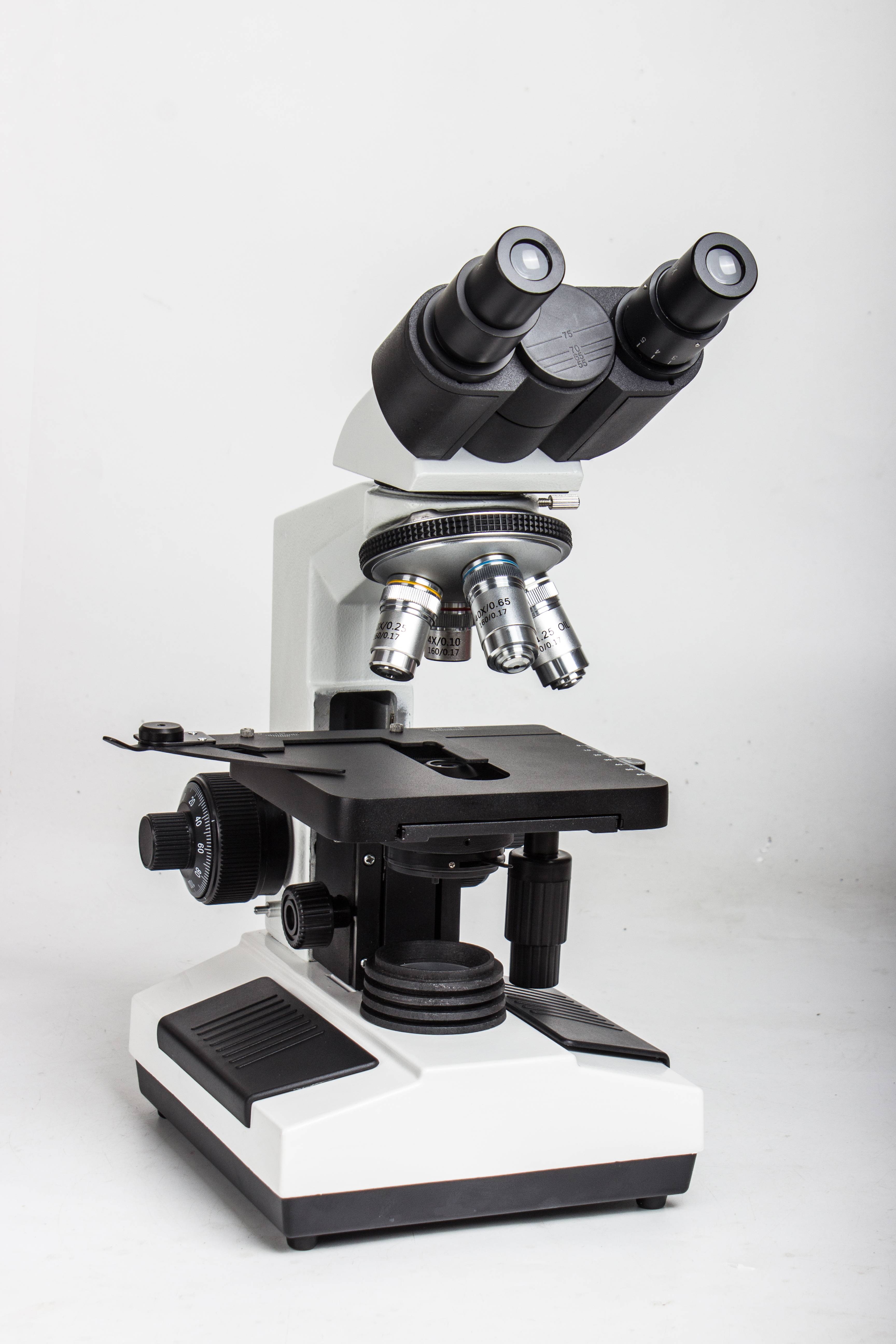

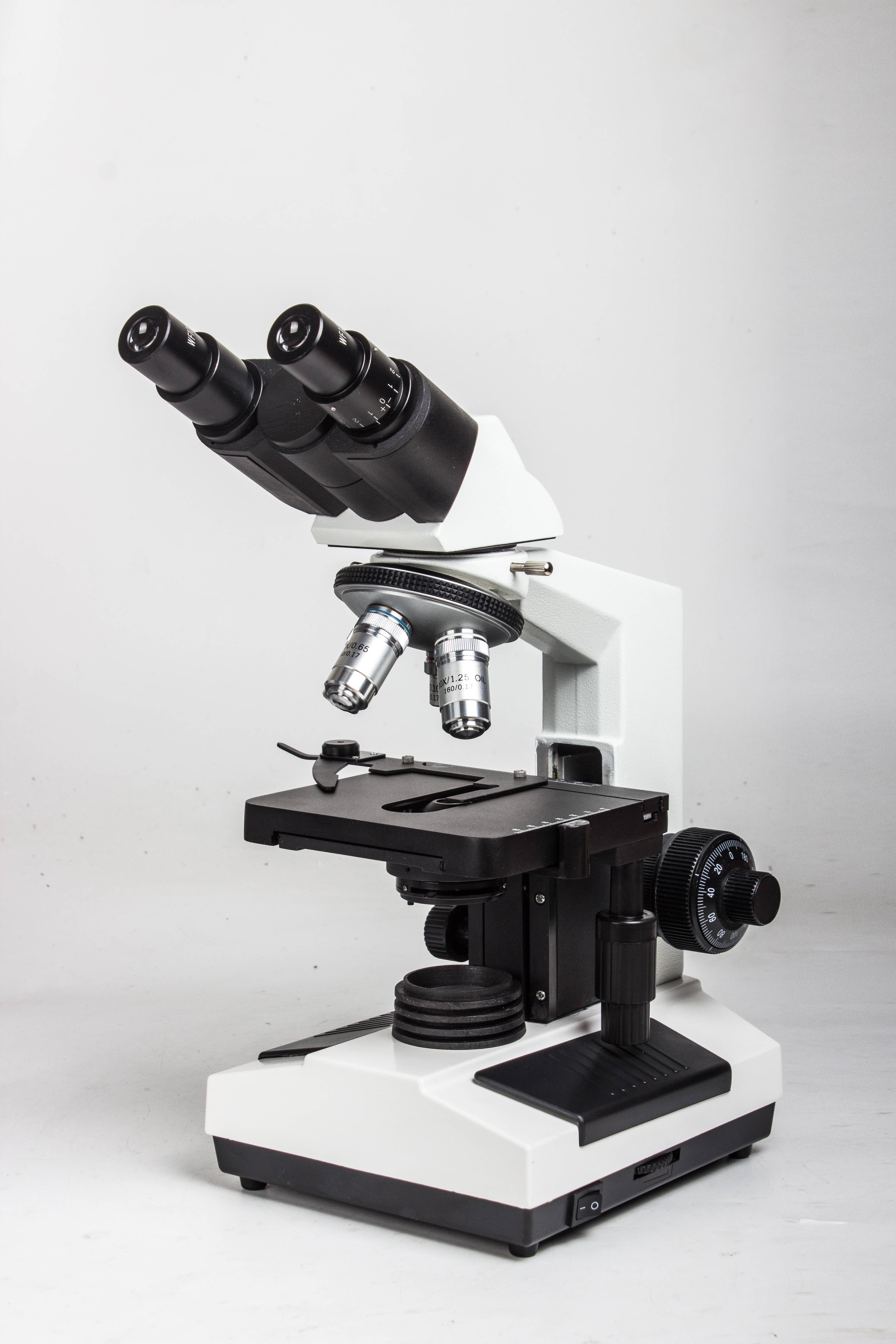

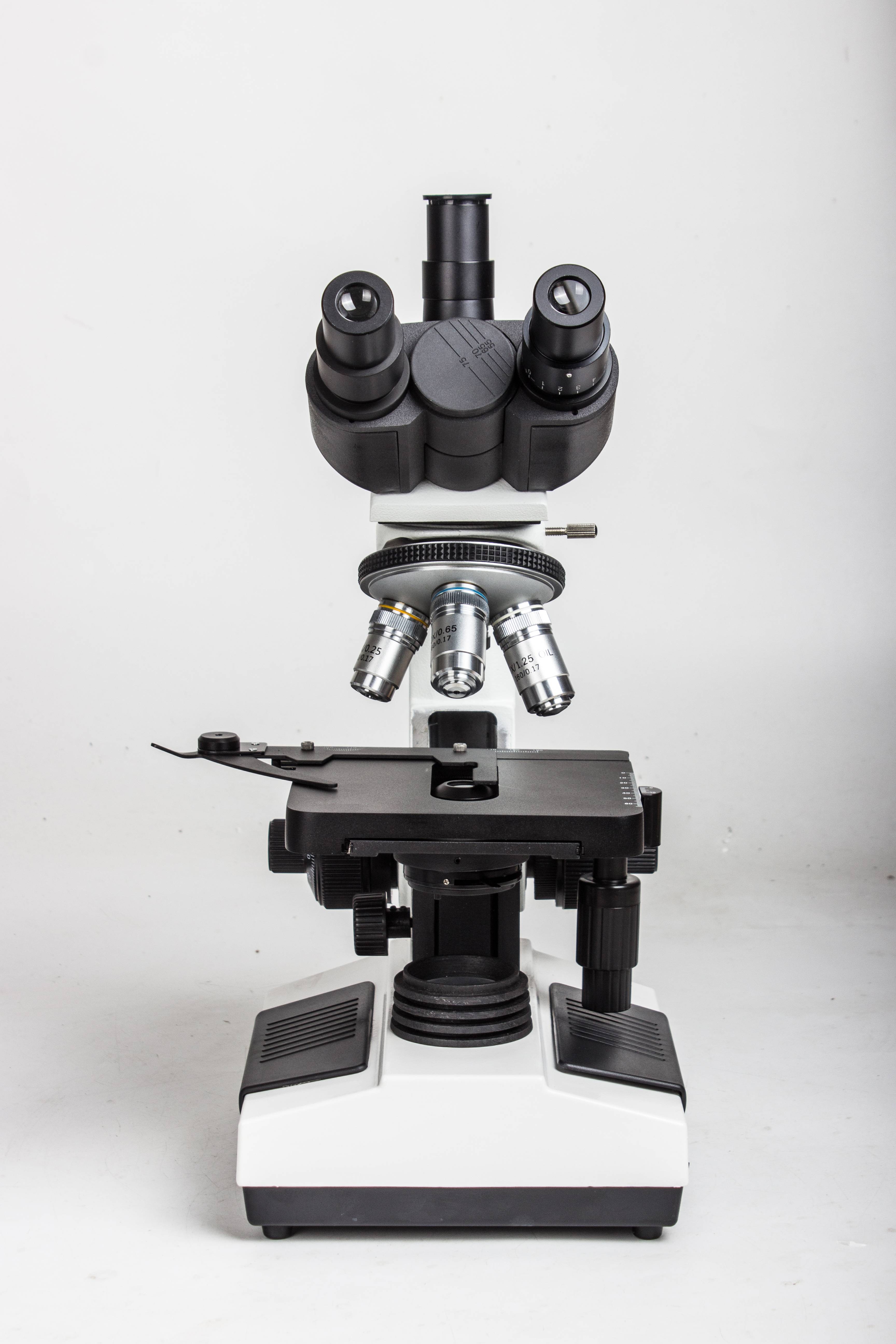

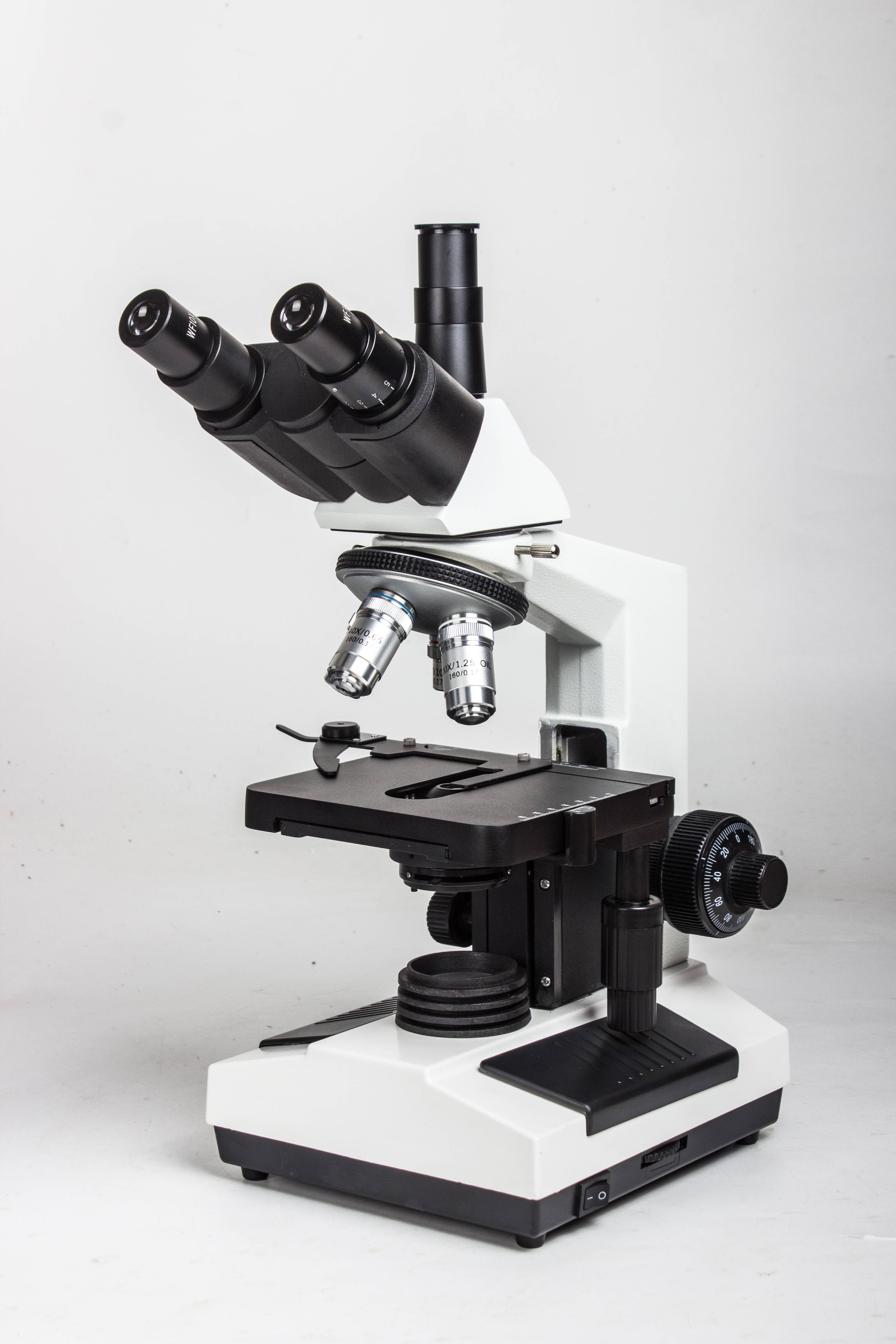

BL-107 / 107CCD
Key Selling Points
- Binocular, Trinocular & Screen options — flexible for lab, teaching and documentation
- Largest stage in the BL series — 140×140 mm dual-layer mechanical stage for oversized specimens
- Abbe condenser NA 1.25 — superior light control with adjustable diaphragm and color filter
- 100× oil immersion objective — suitable for microbiology, pathology and clinical use
- 4-hole nosepiece — quick and smooth objective switching
- Fluorescence device compatible — upgradeable for advanced research applications

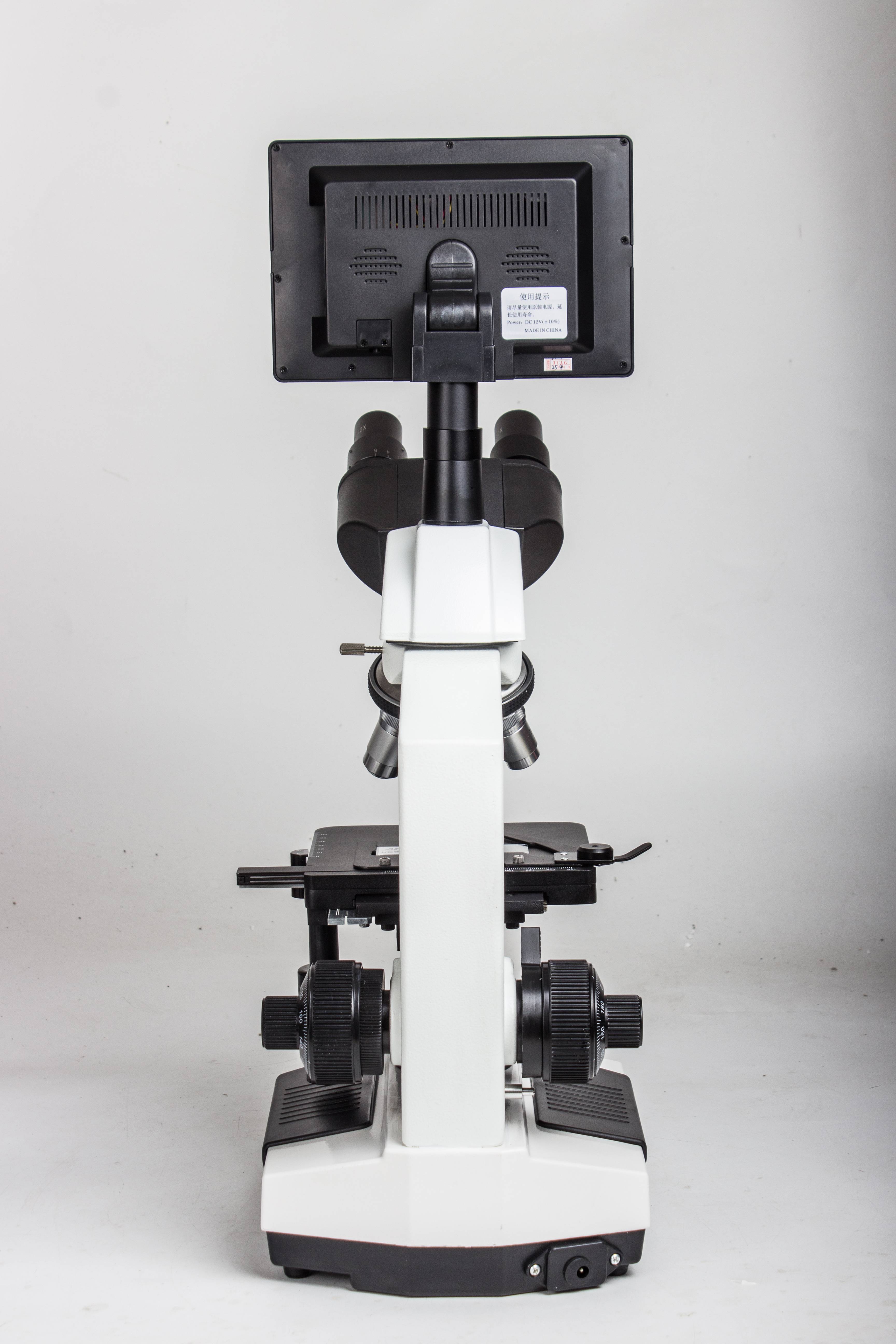

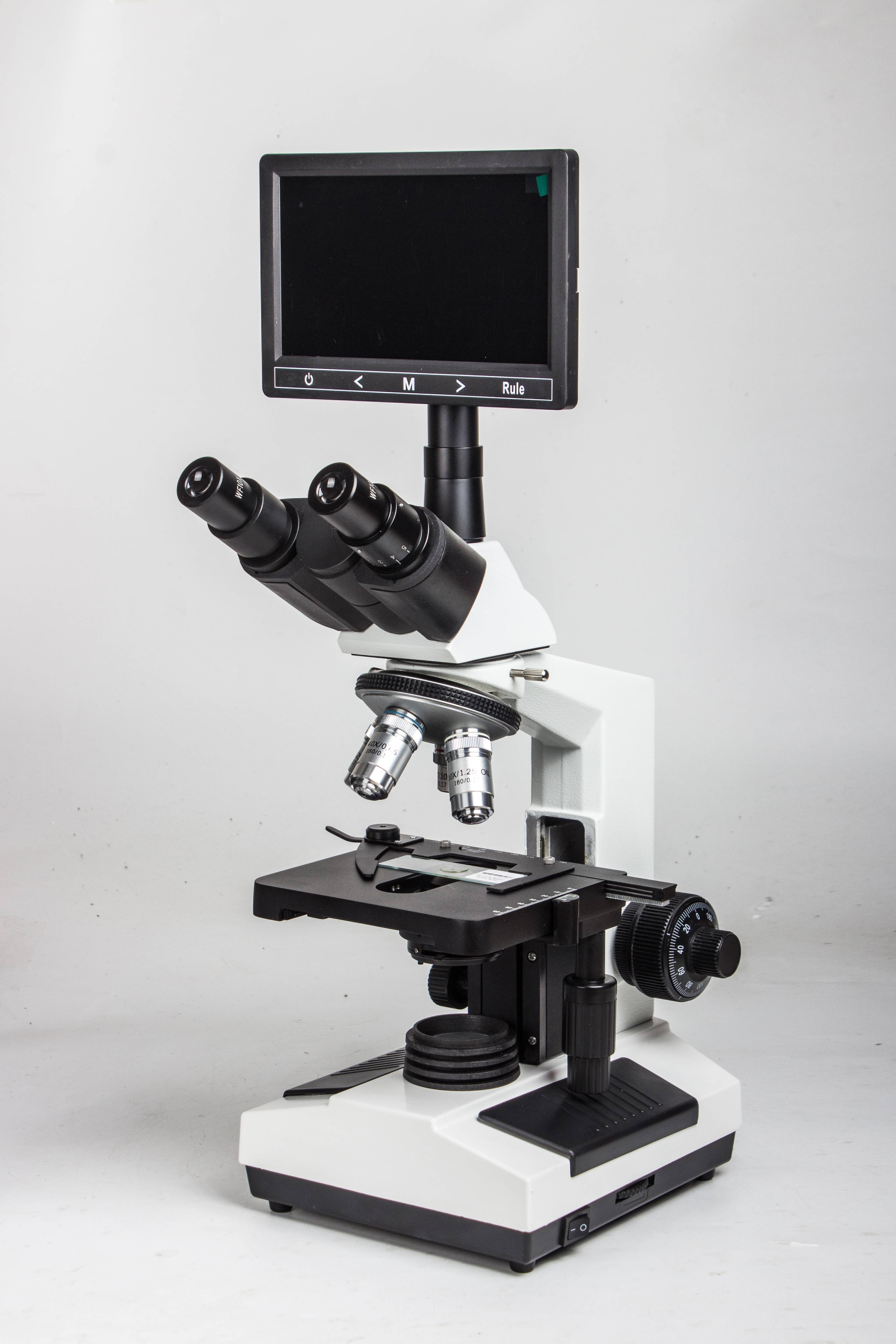

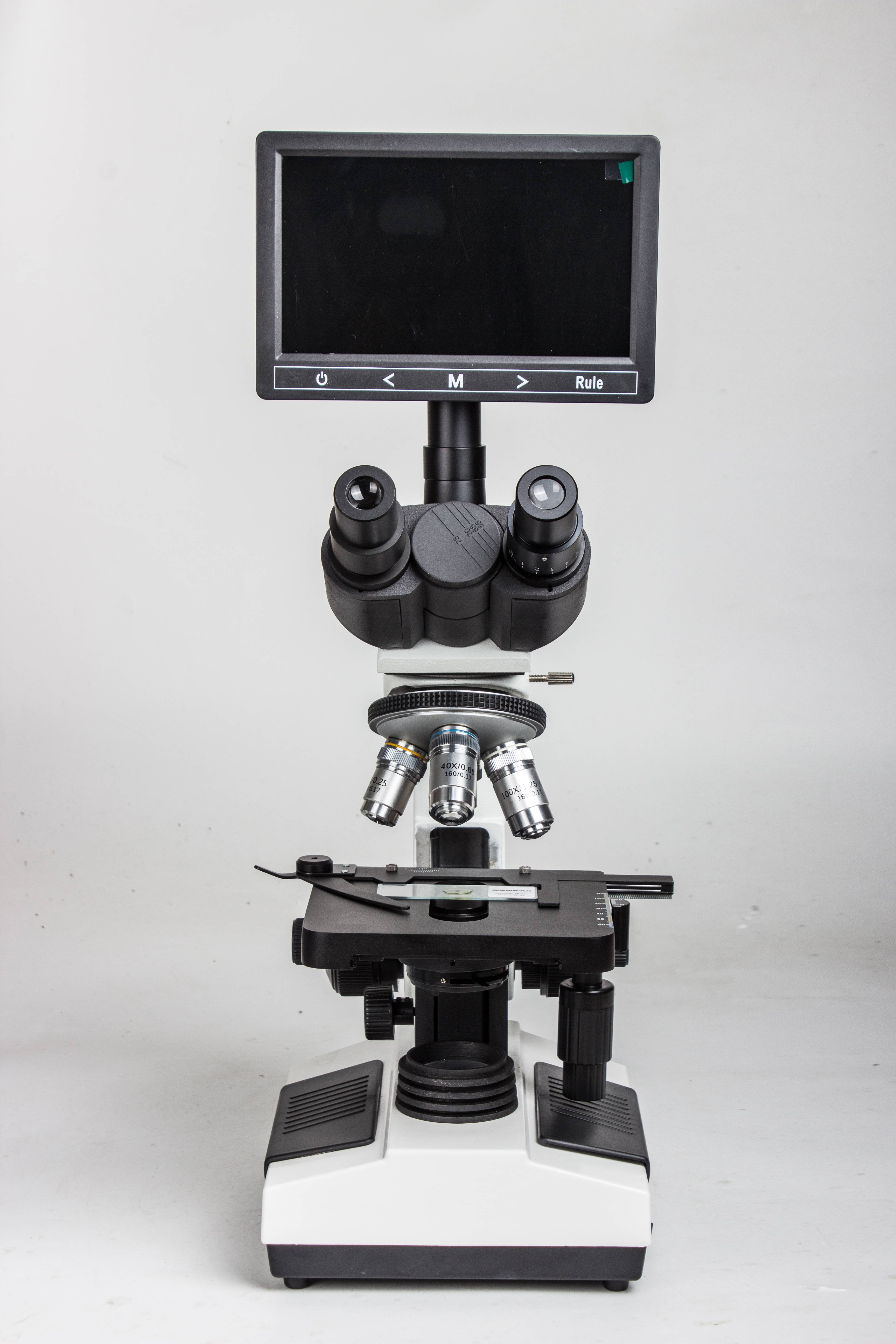

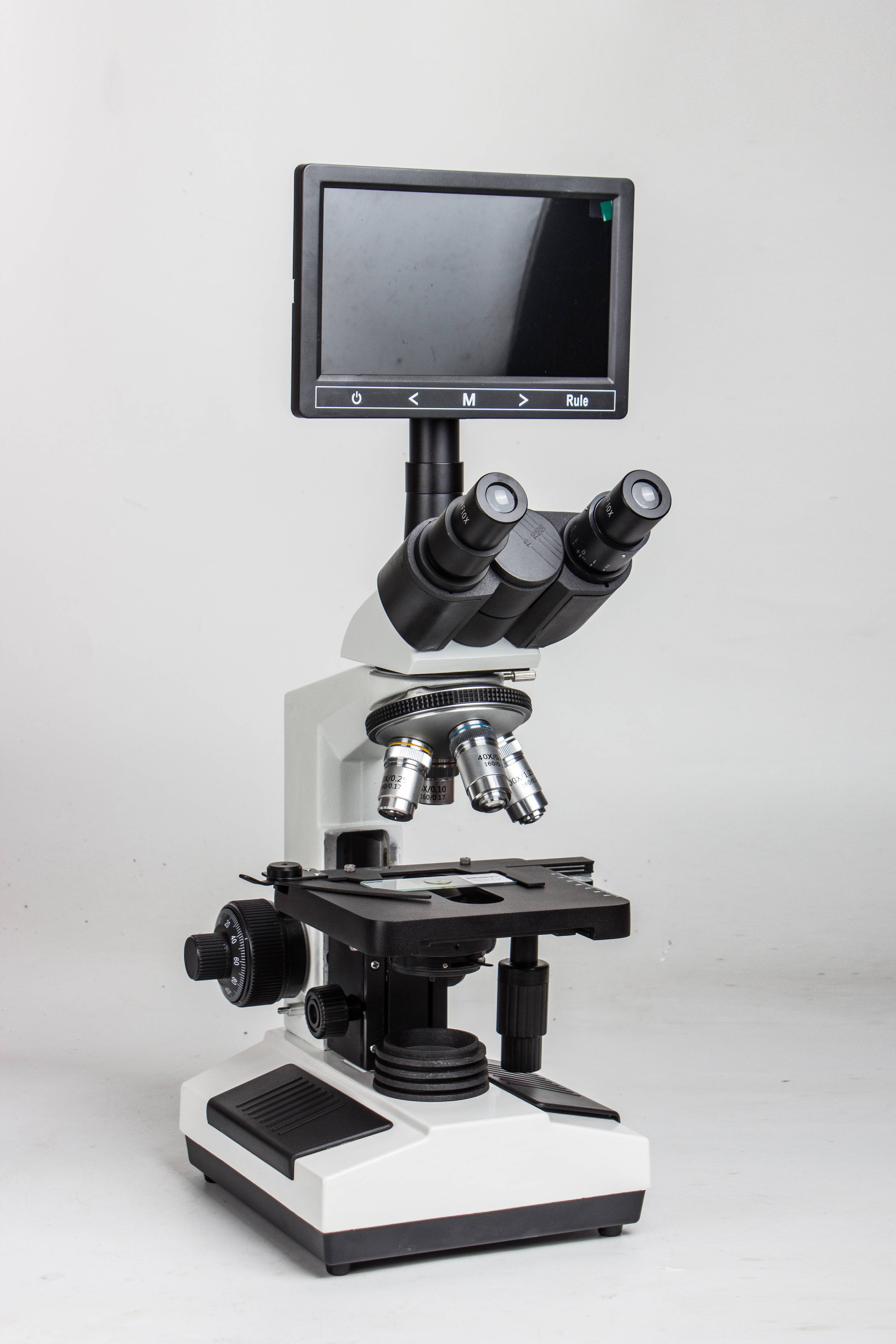

- 7-inch HD screen option — real-time observation and group sharing
Related products
Describe
BL-107 / BL-107CCD / BL-107 Trinocular 7-inch HD Specifications
- Observation Head: Binocular / Trinocular (TV) / Trinocular (TV) with 7.0-inch Displa
- Display: HD 7-inch screen
- Interpupillary Distance: 55–75 mm
- Eyepiece: Wide-field WF10× / WF16×
- Objectives: Achromatic 4×, 10×, 40×(Spring), 100×(Oil, Spring)
- Stage: Dual-layer mechanical stage (140×140 mm)
- Focusing: Coaxial coarse & fine focusing
- Nosepiece: 4-hole nosepiece
- Condenser: Abbe NA 1.25 with adjustable aperture diaphragm and color filter
- Illumination: LED, adjustable brightness
- Optional Accessories: 20× eyepieces; electronic eyepiece; display screen; fluorescence device
