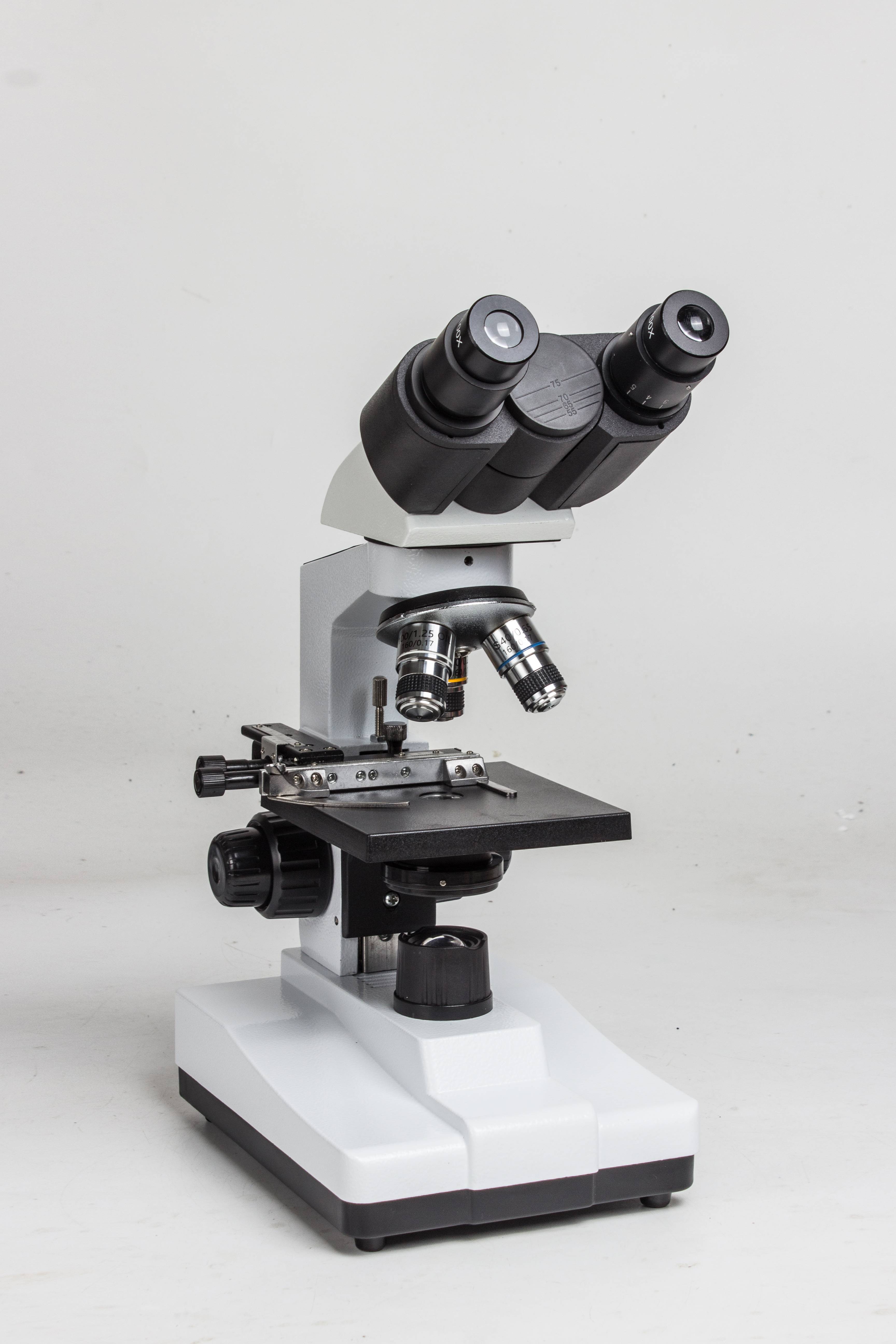

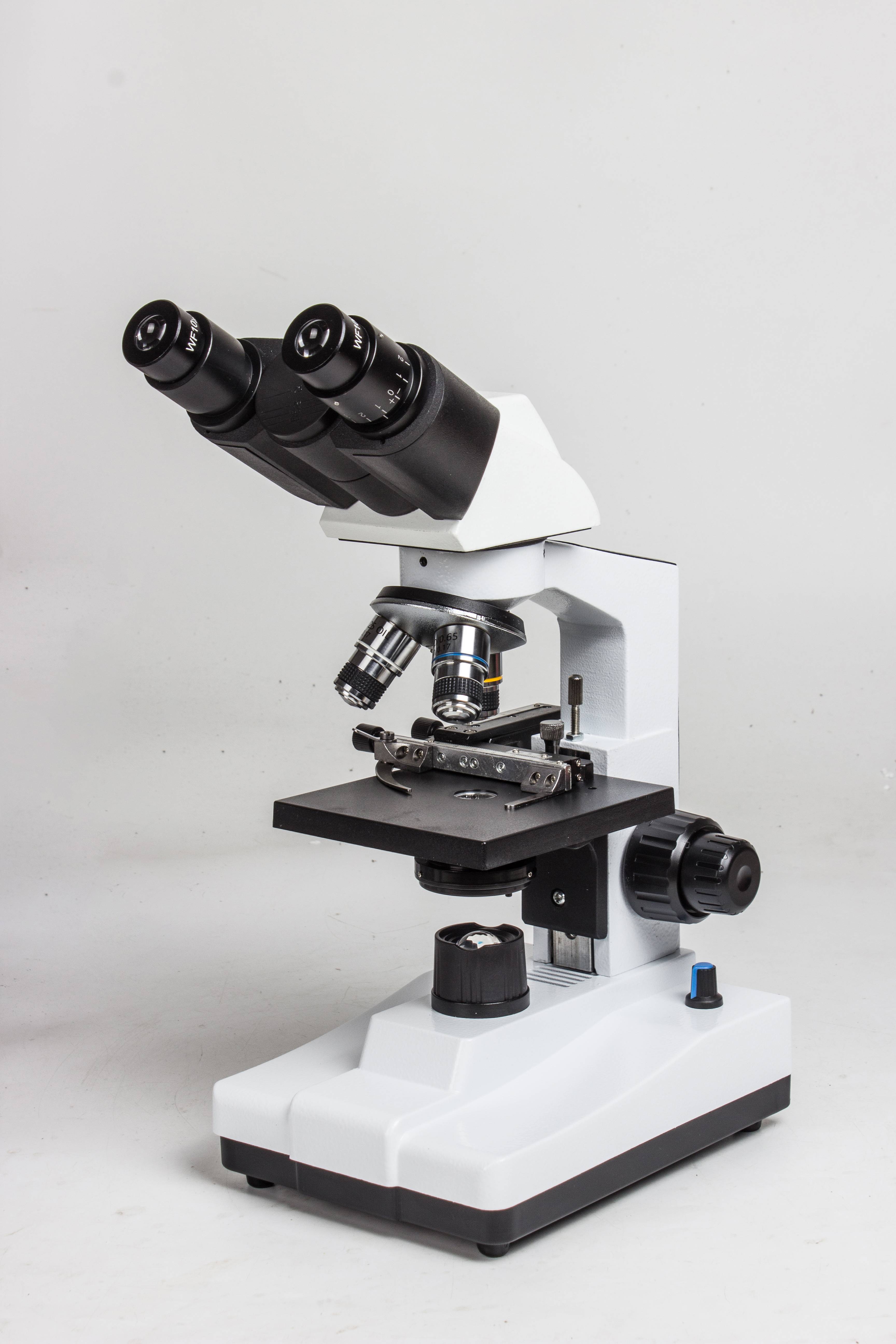

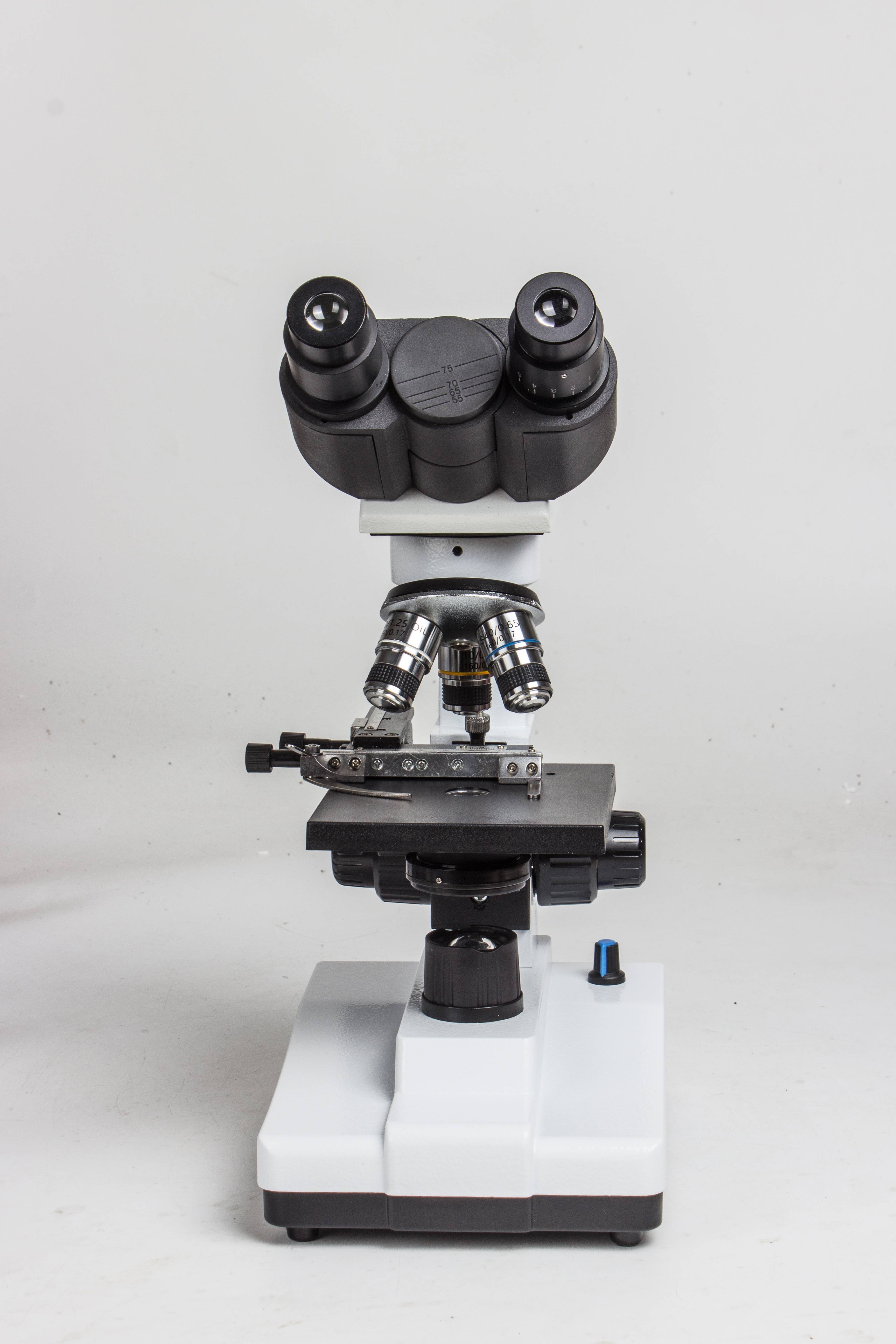

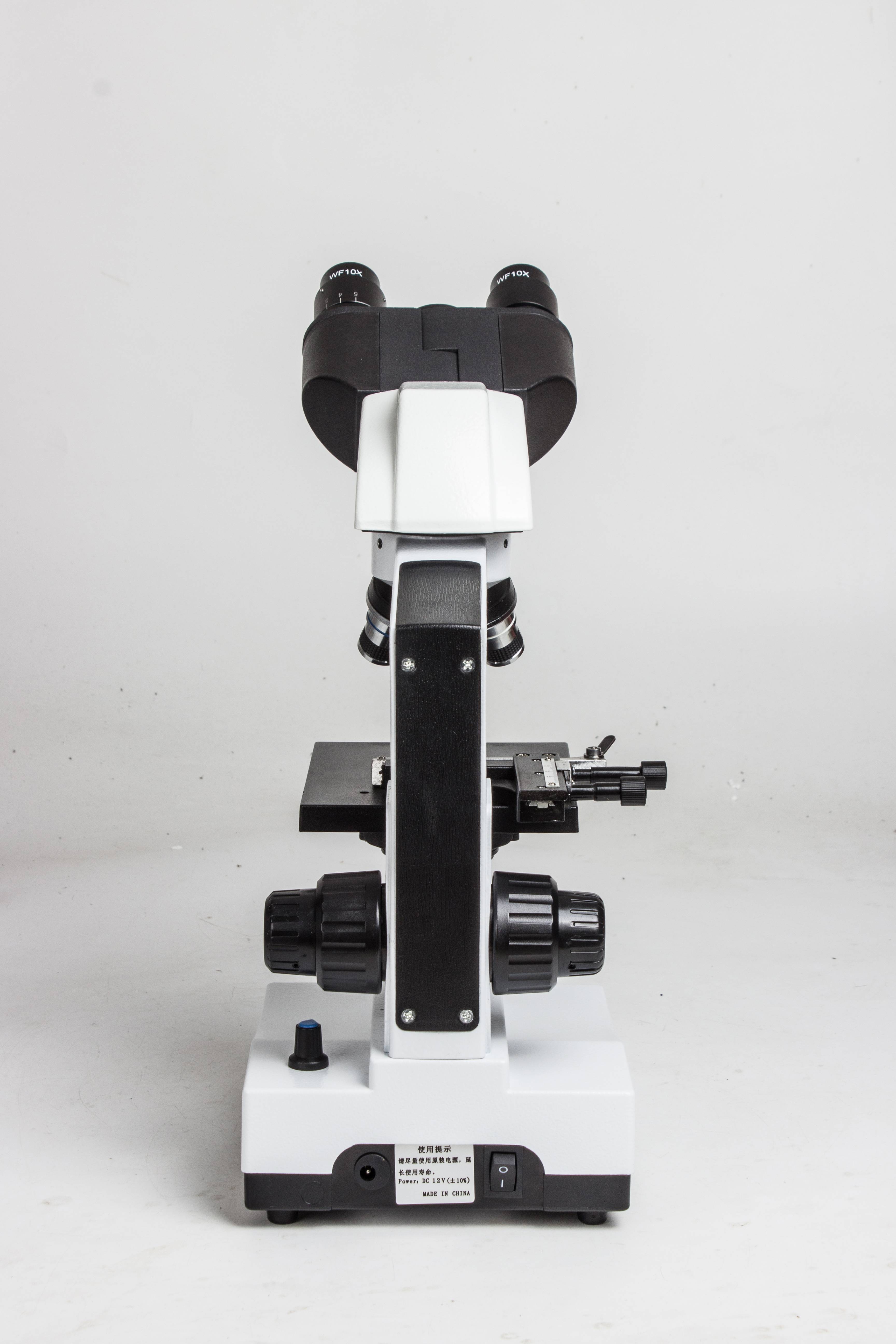

BL-36H Binocular Version
BL-36H Key Selling Points
- 360° rotatable head — ergonomic viewing from any angle
- Mono, Binocular & Trinocular options — flexible for individual and group use
- 100× oil immersion objective — suitable for clinical and microbiological applications
- Dual stage options — single or dual-layer mechanical stage for different needs
- Wide-field eyepieces — WF10× / WF16× for comfortable extended viewing
- TV port available — trinocular version ready for camera or display connection
- Compact and versatile — suitable for lab, clinic and educational settings
Describe
BL-36H / BL-36H TV Specifications
- Observation Head: Monocular / Monocular (TV) / Binocular / Trinocular (TV), 30° inclined, 360° rotatable
- Interpupillary Distance: 55–75 mm
- Eyepiece: Wide-field WF10× / WF16×
- Objectives: Achromatic 10×, 40×(Spring), 100×(Oil, Spring)
- Stage: Single-layer stage with moving scale (110×120 mm) / Dual-layer mechanical stage with moving scale (115×125 mm)
- Focusing: Coaxial coarse & fine focusing with axial mechanism
- Nosepiece: 3-hole nosepiece
- Illumination: LED, adjustable brightness
